One way hinges



  • Compact, thin and high-torque, the width is 13mm for 0.1 to 1.0N.m type (0.88 to 8.85 lbf.in) or 19mm for 1.0 to 3.0N.m type (8.85 to 26.55 lbf.in); therefore, it requires minimum mounting space.
  • It has a small width but with a high torque which has achieved a minimum mounting space.

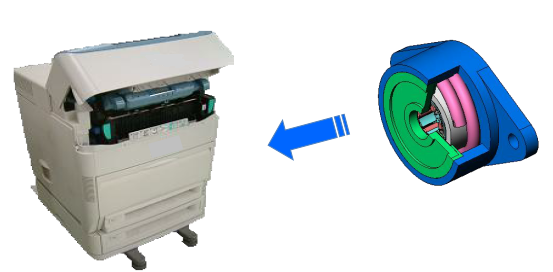

  • Free Stop capable of stopping a lid at any position and supporting its load.It is able to keep the lid hold up at any position with a certain torque and doesn't fall down.

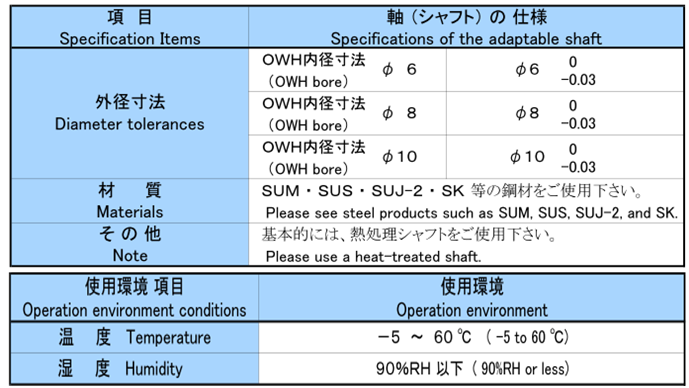

  • Operation condition:
  • -0.5˚C to +60˚C, 90%RH
  • Not easily affected by environmental conditions.
  • The wide range of the working condition is avaibale from -5C to +60C with 90%RH.
  • Wide to torque setting range
  • A standard setting torque is from 0.1 to 3.0N.m (0.885 to 26.55lbf.in)by an increment of 0.1N.m(1lbf.in). units within the range.
  • Standard torque is set from 0.1 to 3.0N.m by 0.1N.m each step, which provides a wide range of torque.
  • Two directions are available:  L and R, are available in terms of torque generation direction.
  • Easy mounting:

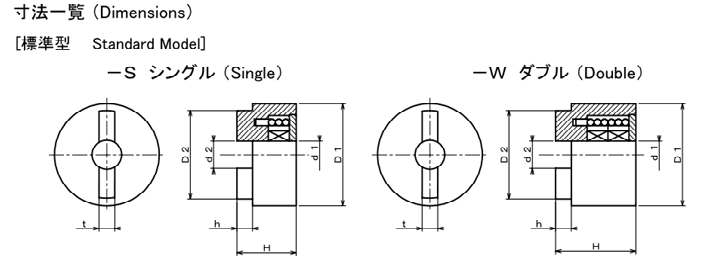

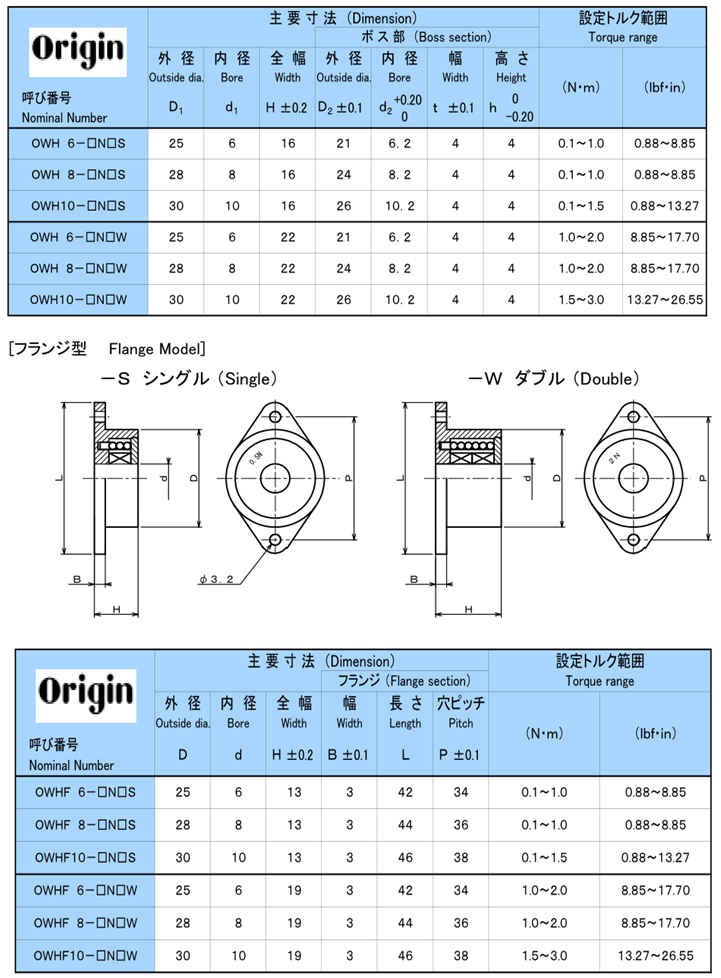

  • 2 general types of shapes are available: a standard type and a flange type. Usage depends on the mounting conditions requirement.
  • 1 special type is the bracket type, available for special requirement.

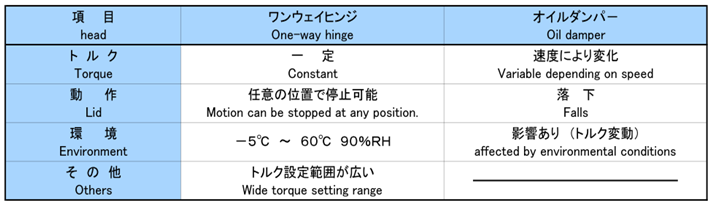

          Comparision with oil damper
